BEKO DRYPOINT® RA CT

• Required pre-filtration: 1 μm | Recommended post-filtration: .01 μm
• UL/CSA certified: RA CT 20-200: 115V | RA CT 250-500: 230V
• Outlet pressure dew point: Class 4-5 in accordance with ISO 8573-1:2010
• Max. inlet air temperature: 160 °F
• Min. / max. ambient temperature: 34 °F / 120 °F
• Max. inlet pressure: RA CT 20-50: 232 psig | RA CT 75-500: 200 psig

Maintenance Interval:   < 8,000 hours
• Maintenance Kits & Spare Parts

Click Here for Correction Factor Charts


Operating Pressure psig 60 80 100 120 140 160 180 200
Correction Factor .79 .91 1.00 1.07 1.13 1.18 1.23 1.27

Ambient Air Temperature °F 80 90 100 105 110 115 120
Correction Factor 1.11 1.09 1.00 .94 .87 .78 .69

Inlet Air Temperature °F 90 100 110 120 130 140 150 160
Correction Factor 1.16 1.00 .82 .68 .61 .52 .45 .40
The correction factors on this page provide an estimation of the performance that can be achieved with the model sizes shown. For precise sizing for your application, please contact your MDI sales representative.
*Scroll to the right on mobile to see entire chart
  Quantity Add to
Quote		 DRYPOINT® RA CT
Connection Size
(NPT)
Flow Rate
(scfm)
Power Consumption
at Full Load (kW)
Standard
Operating
Voltage
RACT 20
½"
20
.26
115 V / 1 Ph
RACT 30
½"
30
.27
115 V / 1 Ph
RACT 50
½"
50
.39
115 V / 1 Ph
RACT 75
1"
75
.48
115 V / 1 Ph
RACT 100
1¼"
100
.58
115 V / 1 Ph
RACT 125
1¼"
125
1.00
115 V / 1 Ph
RACT 150
1¼"
150
1.05
115 V / 1 Ph
RACT 200
1½"
200
1.10
115 V / 1 Ph
  Quantity Add to
Quote		 DRYPOINT® RA CT
Connection Size
(NPT)
Flow Rate
(scfm)
Power Consumption
at Full Load (kW)
Optional
Operating
Voltage
RACT 125
1¼"
125
1.00
230 V / 1 Ph
RACT 150
1¼"
150
1.05
230 V / 1 Ph
  Quantity Add to
Quote		 DRYPOINT® RA CT
Connection Size
(NPT)
Flow Rate
(scfm)
Power Consumption
at Full Load (kW)
Standard
Operating
Voltage
RACT 250
1½"
250
1.39
230 V / 1 Ph
RACT 300
2"
300
1.64
230 V / 1 Ph
RACT 350
2"
350
2.19
230 V / 1 Ph
RACT 400
2½"
400
2.48
230 V / 1 Ph
RACT 500
2½"
500
2.97
230 V / 1 Ph
  Quantity Add to
Quote		 DRYPOINT® RA CT
Connection Size
(NPT)
Flow Rate
(scfm)
Power Consumption
at Full Load (kW)
Optional
Operating
Voltage
RACT 200
1½"
200
1.10
460 V / 3 Ph
RACT 250
1½"
250
1.39
460 V / 3 Ph
RACT 300
2"
300
1.64
460 V / 3 Ph
RACT 350
2"
350
2.19
460 V / 3 Ph
RACT 400
2½"
400
2.48
460 V / 3 Ph
RACT 500
2½"
500
2.97
460 V / 3 Ph



*Scroll to the right on mobile to see entire chart
REQUIRED 1 μm PRE-FILTRATION
without Δpsi gauge | Float Drain
with Δpsi gauge | BEKOMAT®
RACT 20
4020220
4020251
RACT 30
4020220
4020251
RACT 50
4002891
4017447
RACT 75
4020305
4020404
RACT 100
4020305
4020404
RACT 125
4020305
4020404
RACT 150
4002894
4014546
RACT 200
4002896
4016192
RACT 250
4002896
4016192
RACT 300
4002898
4006657
RACT 350
4002898
4006657
RACT 400
4002901
4014908
RACT 500
4002901
4014908

*Scroll to the right on mobile to see entire chart
OPTIONAL .01 μm POST-FILTRATION
Post-Filter | .01 μm
RACT 20
4020231
RACT 30
4020231
RACT 50
4002951
RACT 75
4020384
RACT 100
4020384
RACT 125
4020384
RACT 150
4002954
RACT 200
4002956
RACT 250
4002956
RACT 300
4002958
RACT 350
4002958
RACT 400
4002961
RACT 500
4002961




For more options, Please consult your MDI sales representative.





*Scroll to the right on mobile to see entire chart

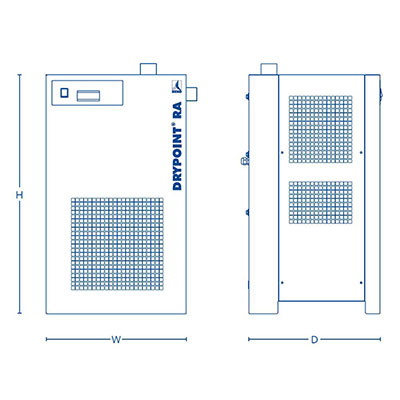

DRYPOINT® RA CT
H x W x D (inches)
Weight (lbs)
RACT 20
29 x 14 x 17
62
RACT 30
29 x 14 x 17
64
RACT 50
29 x 14 x 17
75
RACT 75
29 x 14 x 17
79
RACT 100
32 x 19 x 18
82
RACT 125
32 x 19 x 18
101
RACT 150
32 x 19 x 18
110
RACT 200
35 x 22 x 23
121
RACT 250
35 x 22 x 23
139
RACT 300
38 x 22 x 25
203
RACT 350
38 x 22 x 25
207
RACT 400
44 x 26 x 29
331
RACT 500
44 x 26 x 29
355
