BEKO DRYPOINT® AC HP

• Standard outlet pressure dew point: -40 °F
• Optional outlet pressure dew point: -100 °F
• Vessels and all components are stainless steel
• Optional pressure approvals: on request
• Shock and vibration proof systems: on request
• External low pressure purge attachment: on request
• Standard electrical power supply: 85 - 265 VAC; 24 Vdc; 50-60 Hz
• Included pre-filtration grade SX: .01 μm
• Optional pre-filtration grade FX: 1 μm
• Included post-filtration grade FX: 1 μm
• Min. / max. air inlet temperature: 40 °F / 130 °F

Maintenance Interval:   < 8,000 hours
Maintenance Kits & Spare Parts

Click Here for Correction Factor Charts


Pressure (psig) 85°F 95°F 100°F 110°F 120°F 130°F
1,085 psig (AC HP 100) .78 .76 .59 .46 .36 .29
1,450 psig (AC HP 100) 1.03 1.00 .78 .61 .48 .38
2,900 psig (AC HP 250) .86 .83 .65 .51 .40 .32
3,600 psig (AC HP 250) 1.03 1.00 .78 .61 .48 .38
4,350 psig (AC HP 350) .90 .990 .70 .54 .43 .34
5,000 psig (AC HP 350) 1.03 1.00 .78 .61 .48 .39
The correction factors on this page provide an estimation of the performance that can be achieved with the model sizes shown. For precise sizing for your application, please contact your MDI sales representative.

Please contact us in the case of higher pressure of performance requirements. Performance values according to DIN ISO 7183, related to max. and an inlet temperature of 95 °F.
*Scroll to the right on mobile to see entire chart
DRYPOINT® AC HP Models
Connection Size (NPT)
Flow Rate (scfm)
Max. Pressure (psig)
AC 60 HP 100
½"
35
1450
AC 90 HP 100
½"
50
1450
AC 160 HP 100
½"
95
1450
AC 250 HP 100
½"
145
1450
AC 390 HP 100
½"
230
1450
AC 110 HP 250
½"
65
3600
AC 145 HP 250
½"
85
3600
AC 210 HP 250
½"
125
3600
AC 440 HP 250
½"
260
3600
AC 655 HP 250
½"
385
3600
AC 145 HP 350
½"
85
5000
AC 190 HP 350
½"
110
5000
AC 265 HP 350
½"
155
5000
AC 540 HP 350
½"
315
5000
AC 820 HP 350
½"
480
5000



• Included pre-filtration grade SX: .01 μm
• Optional pre-filtration grade FX: 1 μm
• Included post-filtration grade FX: 1 μm



For more options, Please consult your MDI sales representative.




*Scroll to the right on mobile to see entire chart
DRYPOINT® AC HP

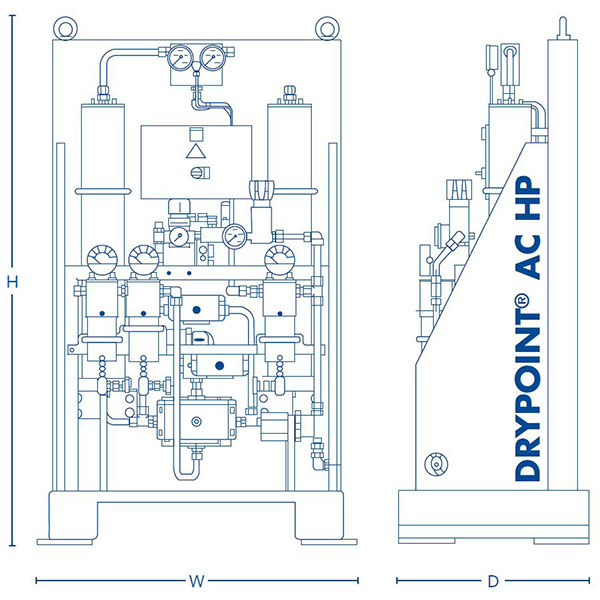

H x W x D (inches)
Weight (lbs)
AC 60 HP 100
57 x 31 x 18
350
AC 90 HP 100
59 x 31 x 18
350
AC 160 HP 100
59 x 31 x 18
400
AC 250 HP 100
70 x 31 x 18
550
AC 390 HP 100
70 x 33 x 20
570
AC 110 HP 250
53 x 31 x 18
460
AC 145 HP 250
53 x 31 x 18
485
AC 210 HP 250
66 x 31 x 18
540
AC 440 HP 250
66 x 31 x 18
620
AC 655 HP 250
70 x 33 x 20
680
AC 145 HP 350
53 x 31 x 18
460
AC 190 HP 350
53 x 31 x 18
485
AC 265 HP 350
66 x 31 x 18
540
AC 540 HP 350
66 x 31 x 18
620
AC 820 HP 350
70 x 33 x 20
680
