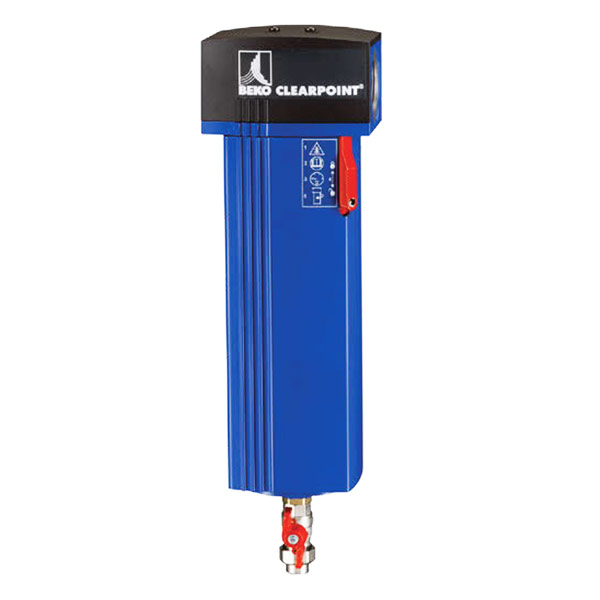

BEKO CLEARPOINT® Threaded Water Separators

with float drain

• Removal of large quantities of condensate
• Used downstream of aftercoolers
• CRN approved
• Max. operating pressure: 232 psig
• Max. operating temperature: 140 °F

Maintenance Interval:   < 8,000 hours

Click Here for Correction Factor Charts


Operating Pressure psig 20 40 60 80 90 100 110 120 130 140 160 180 200 230
Correction Factor .30 .48 .65 .82 .91 1.00 1.09 1.17 1.26 1.35 1.52 1.70 1.87 2.13
The correction factors on this page provide an estimation of the performance that can be achieved with the model sizes shown. For precise sizing for your application, please contact your MDI sales representative.
*Scroll to the right on mobile to see entire chart
ELEMENT GRADE
ELEMENT TYPE
Δ PRESSURE (psid)
REMOVAL RATE
Grade W
Water Separator
.87
99.0%

*Scroll to the right on mobile to see entire chart
CLEARPOINT® S040 S045 S050 S075 S100 M010
Pipe Size (NPT) ⅜" ½" ½" ¾" 1" 1"
Flow Rate (scfm) 25 30 50 100 125 160
Separator Size 04W 04W 05W 07W 07W 10W
Order Ref. 4005005 4020216 4004735 4004736 4020380 4004732
Add to Quote



• CLEARPOINT Accessories
For more options, Please consult your MDI sales representative.





*Scroll to the right on mobile to see entire chart
CLEARPOINT® S040 S045 S050 S075 S100 M010
A (inches) 2.95 2.95 2.95 3.94 3.94 3.94
C (inches) 7.09 7.09 8.27 11.02 11.02 13.78
D (inches) 5.91 5.91 5.91 5.91 5.91 5.91
Weight (lbs) 1.65 1.65 1.87 3.75 4.18 4.63
