BEKO CLEARPOINT® V Activated Carbon Adsorption Towers

in-line oil vapor removal towers with activated carbon fill

• Filled with activated carbon adsorbent
• Required pre-filtration: .01 μm
• Residual oil vapor content down to .003 mg/m3
• Max. inlet moisture: 30% (dryer required upstream)
• Max. operating pressure: 232 psig
• Max. operating temperature: 140 °F

Maintenance Interval:   < 8,000 hours

Click Here for Correction Factor Charts


Operating Pressure psig 60 70 80 90 100 110 120 130 140 150
Correction Factor .65 .74 .83 .91 1.00 1.12 1.16 1.20 1.25 1.29
The correction factors on this page provide an estimation of the performance that can be achieved with the model sizes shown. For precise sizing for your application, please contact your MDI sales representative.
*Scroll to the right on mobile to see entire chart
  Quantity Add to
Quote		 CLEARPOINT® Pipe Size Flow Rate (scfm) Order Ref.
V80 ¾" (NPT) 80 4034705
V100 1" (NPT) 100 4034706
V120 1" (NPT) 120 4034707
V160 1¼" (NPT) 160 4034708
V200 1¼" (NPT) 200 4034709
V250 1½" (NPT) 250 4034710
V300 1½" (NPT) 300 4034711
V400 2" (NPT) 400 4034712
V500 2" (NPT) 500 4034713
V650 2½" (NPT) 650 4034714
V800 2½" (NPT) 800 4034715
V1000 2½" Flange 1000 4034716
V1200 2½" Flange 1200 4034717
V1500 3" Flange 1500 4034718
V1900 3" Flange 1900 4034719
V2300 4" Flange 2300 4034720
V2800 4" Flange 2800 4034721
Pre-Filter Shipped Loose, not mounted

*Scroll to the right on mobile to see entire chart
CLEARPOINT® Required
Pre-Filter .01 μm
V80 S075SDF
V100 S100SDF
V120 S100SDF
V160 M010SDF
V200 M012SDF
V250 M015SDF
V300 M018SDF
V400 M020SDF
V500 M020SDF
V650 M025SDF
V800 M025SDF
V1000 M025SDF
V1200 M027SDF
V1500 M030SDF
V1900 M030SDF
V2300 L102SDB
V2800 L102SDB
Pre-Filter Shipped Loose, not mounted


• CLEARPOINT Accessories
For more options, Please consult your MDI sales representative.





*Scroll to the right on mobile to see entire chart

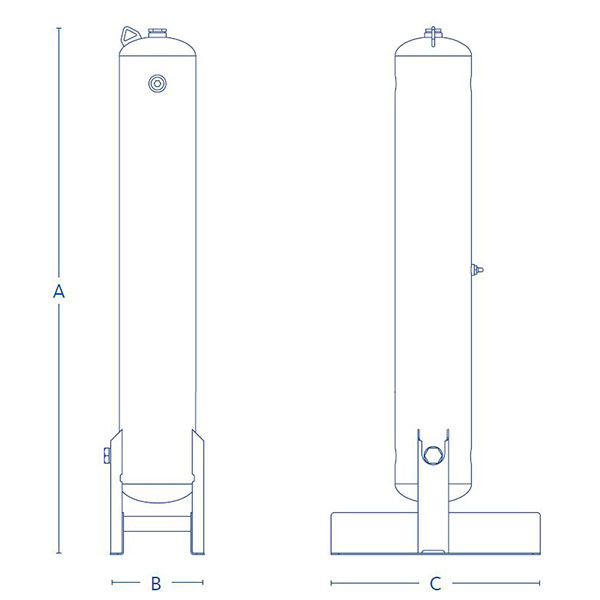

CLEARPOINT® A (inches) B (inches) C (inches) Weight (lbs)
V80 69 16 22 190
V100 69 17 24 190
V120 69 17 24 196
V160 69 20 27 224
V200 69 20 27 260
V250 70 23 32 273
V300 70 23 32 312
V400 73 25 36 356
V500 75 27 38 427
V650 76 31 41 583
V800 76 32 44 609
V1000 90 33 32 734
V1200 91 33 34 872
V1500 94 36 44 1,380
V1900 94 36 44 1,737
V2300 103 46 46 2,168
V2800 103 46 46 2,360
